Water Wheel
Direct falling water onto paddles and explore how a current makes a wheel turn.
Explore every angle
3D MODEL
Load the 3D model to rotate and zoom. Approx. 1.2 MB.
Design concept shown in a fixed pose. The 3D view explores the form; effects and mechanisms are illustrative.
FROM ACTION TO DISCOVERY
How the interaction works
Meet a paddle
Water falls onto a paddle away from the axle, applying a turning force.
Follow the rotation
Successive paddles enter the stream while discharged water returns to the basin.
A CLOSER LOOK
Perspective render

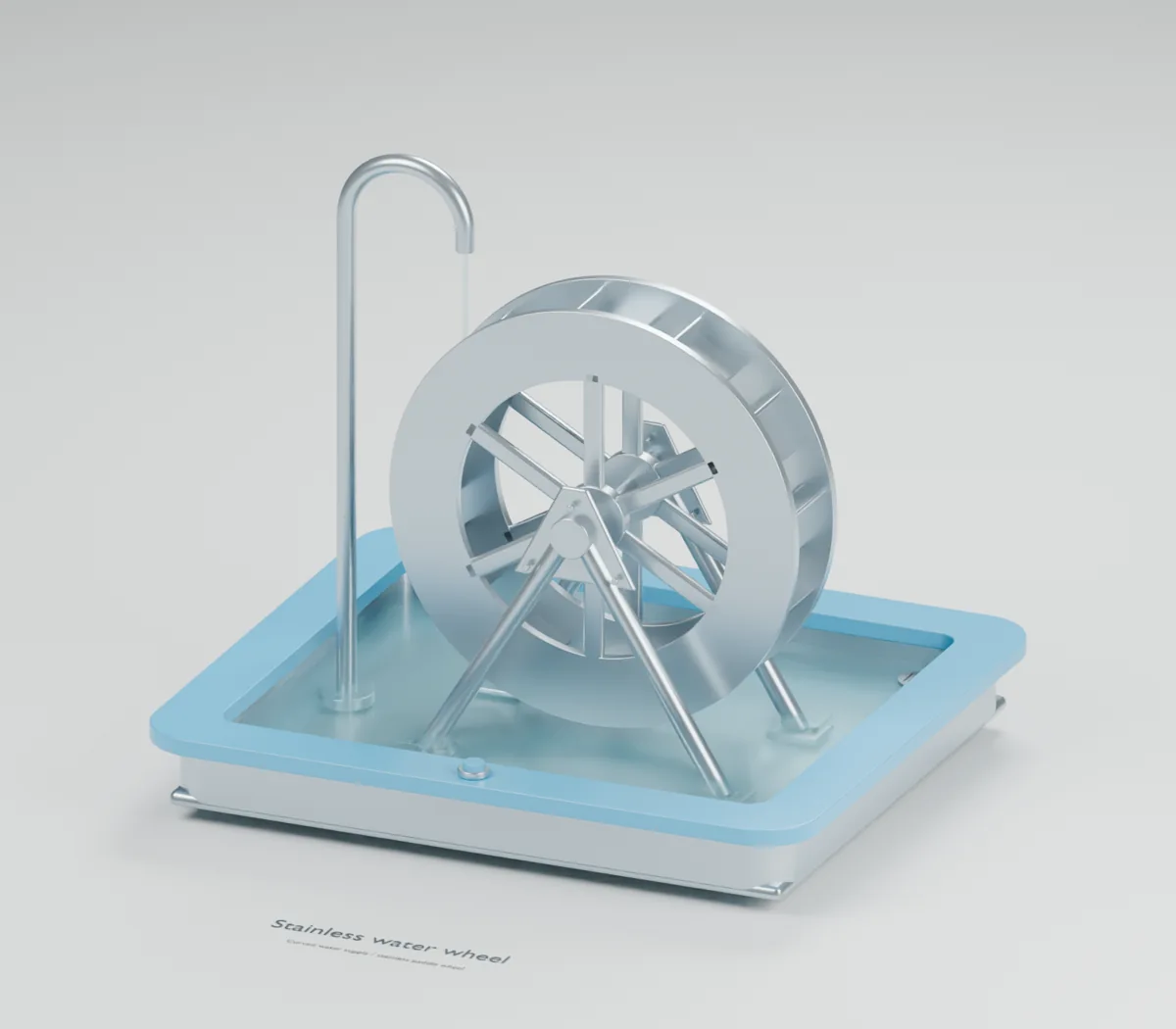

Explore the arrangement of a stainless-steel paddle wheel, open spokes, A-frame supports and curved supply pipe.
LEARNING THROUGH PLAY
What visitors can discover
This concept brings energy transfer, rotation and water power into a shared water-table setting. Visitors can explore the idea at their own pace and compare what they notice with a partner.
Water power
A current can do work on a moving object.
Leverage
The location of the water's impact relative to the axle matters.
Observation
Follow one paddle through a complete revolution to understand the repeating cycle.
PART OF A BIGGER WATER TABLE
Planning Water Wheel
Allow clear views of the paddle contact point and access to the front control. Develop flow, bearings and moving-part protection for the final installation.
The arrangement can be developed for a museum, science centre or play space as part of a custom water table. Final dimensions, materials and operating performance are established during design and engineering.
